Part No. Description Size A Ø Size B Ø Size AF Size AF 1 Size AF 2 Length Image
402 1 ⅛” Bi-Square 54mm 54mm 1 ⅛” 62mm VIEW SCHEMATIC
403 1 5/₁₆” Bi-Square 54mm 58mm 1 5/₁₆ 65mm VIEW SCHEMATIC
404 1 ⅜” Bi-Square 54mm 62mm 1 ⅜” 65mm VIEW SCHEMATIC
405 1 ¹¹⁄₁₆” Bi-Square 62mm 74mm 1 ¹¹⁄₁₆” 70mm VIEW SCHEMATIC
419 40mm Bi-Square 62mm 72mm 40mm 70mm VIEW SCHEMATIC
423 36mm Bi-Square 62mm 64mm 36.5mm 70mm VIEW SCHEMATIC
424 25.4mm Bi-Square, Tapered 54mm 54mm 25.4mm 62mm VIEW SCHEMATIC
425 1″ Bi- Square 54mm 54mm 1″ 100mm VIEW SCHEMATIC
425SQ 1″ Square Deep 54mm 54mm 1″ 100mm VIEW SCHEMATIC
426 32mm Bi-Square 54mm 59mm 32mm 62mm VIEW SCHEMATIC
427T 2″ Bi-Square, Deep, Tapered 2.4″ 3.4″ 2″ 4″ VIEW SCHEMATIC
429 1 5/₁₆” Bi-Square Deep 2.4″ 2.2″ 1 5/₁₆ 4″ VIEW SCHEMATIC
430 ⅞” Bi-Square Deep 1 ⅛” 1 ⅛” ⅞” 4″ VIEW SCHEMATIC
430SQ ⅞” Square Deep 54mm 54mm ⅞” 100mm VIEW SCHEMATIC
431 1 ½” Bi Square Deep 1 ⅛” 2 ¹¹⁄₁₆” 1 ½” 4″ VIEW SCHEMATIC
431T 1 ½” Bi Square Deep , Tapered 2 7/₁₆ 2 ¹⁵/₁₆” 1 ½” 4″ VIEW SCHEMATIC
432 1 ⅝” Bi Square Deep 2 7/₁₆ 2 ¹⁵/₁₆” 1 ⅝” 4″ VIEW SCHEMATIC
432T 1 ⅝” Bi Square Deep , Tapered 2 7/₁₆ 2 ¹⁵/₁₆” 1 ⅝” 4″ VIEW SCHEMATIC
433 1 ¼” Bi-Square 54mm 54mm 1 ¼” 100mm VIEW SCHEMATIC
434 1 ¹¹⁄₁₆” Bi Square Deep 2 7/₁₆ 2 ¹⁵/₁₆” 1 ¹¹⁄₁₆” 4″ VIEW SCHEMATIC
435 1 ¾” Bi Square Deep 2 7/₁₆ 3 ¹⁄₁₆” 1 ¾” 4″ VIEW SCHEMATIC
436 1 ¹³/₁₆” Bi Square Deep 2 7/₁₆ 3 ¹⁄₁₆” 1 ¹³/₁₆” 4″ VIEW SCHEMATIC
440 1 7/₁₆” Bi Square Deep 2 ⅛” 2 ½” 1 7/₁₆ 4″ VIEW SCHEMATIC
442 2 ³/₁₆” Bi Square Deep 2 7/₁₆ 3 ⅝” 2 ³/₁₆” 4″ VIEW SCHEMATIC
447 32mm Hexagon 54mm 54mm 32mm 62mm VIEW SCHEMATIC
448 24mm Hexagon, Tapered 54mm 54mm 24mm 62mm VIEW SCHEMATIC
449 42mm Hexagon 54mm 64mm 42mm 65mm VIEW SCHEMATIC
450 36mm Hexagon 54mm 58mm 36mm 62mm VIEW SCHEMATIC

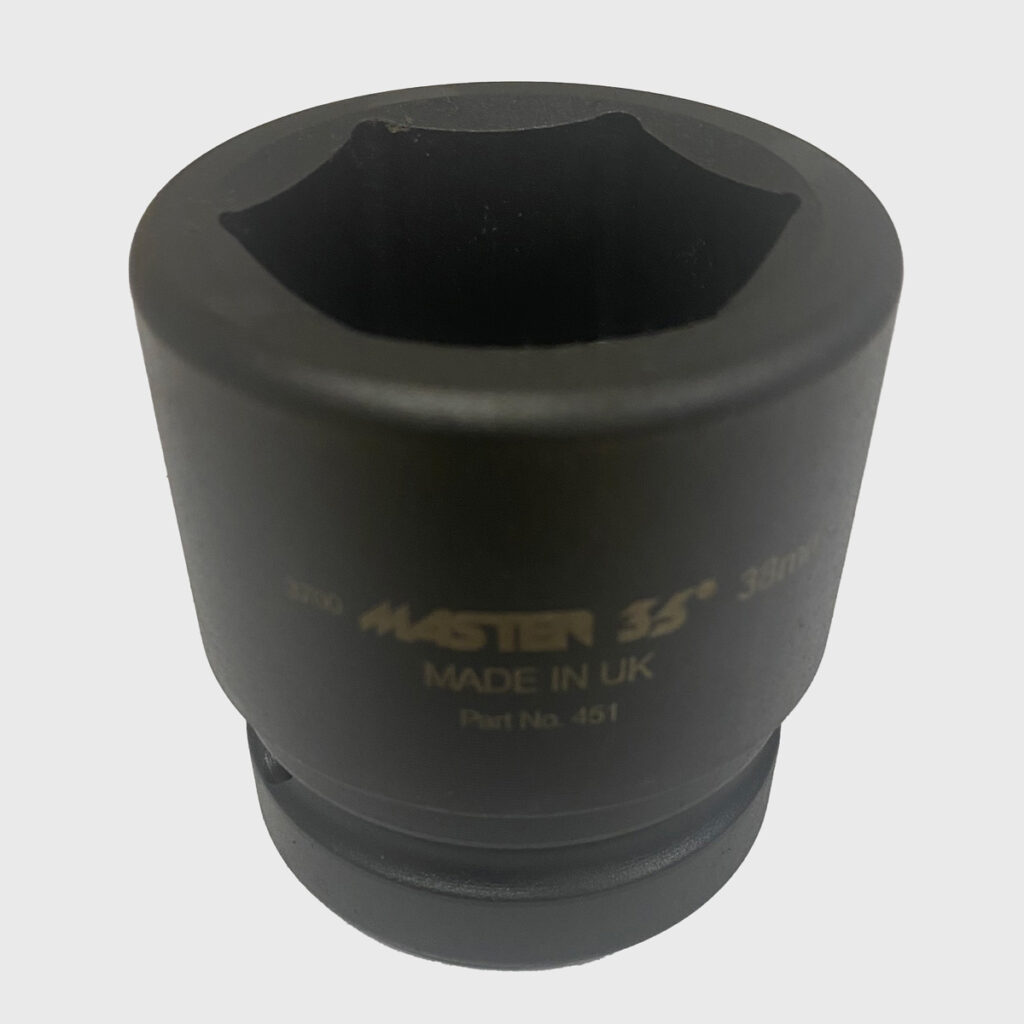

451 38mm Hexagon 54mm 58.5mm 38mm 62mm VIEW SCHEMATIC
452 41mm Hexagon 54mm 63mm 41mm 65mm VIEW SCHEMATIC
453 22mm Square 54mm 54mm 22mm 62mm VIEW SCHEMATIC
454 21mm x 28mm Rectangle 54mm 54mm 21mm 28mm 62mm VIEW SCHEMATIC
454-2BUT 21mm x 28mm Rectangle, Butterfly 54mm 54mm 21mm 28mm 100mm VIEW SCHEMATIC
454D 21mm x 28mm Rectangle, Deep 54mm 54mm 21mm 28mm 100mm VIEW SCHEMATIC
454MAG-B 21mm x 28mm Rectangle, Magnetic 54mm 54mm 21mm 28mm 62mm VIEW SCHEMATIC
454S 21mm x 28mm Rectangle, Thin Wall 54mm 54mm 21mm 28mm 90mm VIEW SCHEMATIC
454T 21mm x 28mm Rectangle, Tapered 54mm 54mm 21mm 28mm 62mm VIEW SCHEMATIC
455 23mm Square, Tapered 54mm 54mm 23mm 62mm VIEW SCHEMATIC
456 39mm Hexagon 54mm 59mm 39mm 62mm VIEW SCHEMATIC
457 39mm Hexagon, Deep 54mm 63mm 39mm 100mm VIEW SCHEMATIC
458 41mm Hexagon, Deep 54mm 63mm 41mm 100mm VIEW SCHEMATIC
462 24mm Square, Tapered 54mm 54mm 24mm 62mm VIEW SCHEMATIC
463 21mm Square, Tapered 54mm 54mm 21mm 62mm VIEW SCHEMATIC
465 38mm Hexagon, Deep 54mm 58.5mm 38mm 100mm VIEW SCHEMATIC
466 36mm Hexagon, Deep 54mm 57mm 36mm 100mm VIEW SCHEMATIC
470 42mm Hexagon, Deep 54mm 64mm 42mm 100mm VIEW SCHEMATIC
473 40mm Hexagon 54mm 62mm 42mm 65mm VIEW SCHEMATIC
478 20mm Square, Tapered 54mm 54mm 20mm 62mm VIEW SCHEMATIC
483 1 ⅝” Bi Square 62mm 74mm 1 ⅝” 70mm VIEW SCHEMATIC
485 ¹⁵/₁₆” Bi Square, Deep 2 ⅛” 2 ⅛” ¹⁵/₁₆” 4″ VIEW SCHEMATIC
486 2 ³/₁₆” Hexagon, Deep 62mm 78mm 2 ³/₁₆” 100mm VIEW SCHEMATIC
493 27mm Hexagon 54mm 54mm 27mm 62mm VIEW SCHEMATIC
494 33mm Hexagon 54mm 54mm 33mm 100mm VIEW SCHEMATIC
495 32mm Hexagon 54mm 54mm 32mm 100mm VIEW SCHEMATIC
496 30mm Hexagon, Tapered 54mm 54mm 30mm 100mm VIEW SCHEMATIC
497 24mm x 28mm Rectangle 54mm 54mm 24mm 28mm 62mm VIEW SCHEMATIC
498 34mm Hexagon 54mm 54mm 34mm 62mm VIEW SCHEMATIC
507 44mm Hexagon 62mm 67mm 44mm 70mm VIEW SCHEMATIC
511 24mm x 20mm Rectangle 54mm 54mm 24mm 20mm 62mm VIEW SCHEMATIC
511D 24mm x 20mm Rectangle, Deep 54mm 54mm 24mm 20mm 100mm VIEW SCHEMATIC
518 1 ³/₁₆” Bi Square, Deep 2 ⅛” 2 ⅛” 1 ³/₁₆” 4″ VIEW SCHEMATIC
519 1 ⅛” Bi Square, Deep 2 ⅛” 2 ⅛” 1 ⅛” 4″ VIEW SCHEMATIC
519SQ 1 ⅛” Square, Deep 54mm 54mm 1 ⅛” 100mm VIEW SCHEMATIC
524 1 ⅜” Bi-Square, Deep 2 ⅛” 2 7/₁₆ 1 ⅜” 4″ VIEW SCHEMATIC
537 19mm Hexagon 54mm 54mm 19mm 100mm VIEW SCHEMATIC
559 ¾” Bi-Square, Deep 2 ⅛” 2 ⅛” ¾” 4″ VIEW SCHEMATIC
562 28mm Square 54mm 58mm 28mm 62mm VIEW SCHEMATIC
710 27mm Hexagon, Tapered 54mm 54mm 27mm 62mm VIEW SCHEMATIC
712 30mm Square, Deep 54mm 54mm 30mm 150mm VIEW SCHEMATIC
723 27mm Square, Deep 54mm 54mm 27mm 150mm VIEW SCHEMATIC
724 23mm Square, Deep 54mm 54mm 23mm 100mm VIEW SCHEMATIC
731 35mm x 23mm Rectangle 54mm 54mm 35mm 23mm 85mm VIEW SCHEMATIC
9999 39mm Hexagon, Special 54mm 59mm 39mm 72mm VIEW SCHEMATIC
CSKL 21mm x 28mm Rectangle, Coach Screw 54mm 54mm 35mm 23mm 95mm VIEW SCHEMATIC
