Stumec Drive

swipe for more info

Part No.	Description	Size A Ø	Size B Ø	Size AF	Size AF 1	Size AF 2	Length	Image
7821SQSTU	21mm Square, Stumec	52mm	52mm	21mm			80mm	VIEW SCHEMATIC
7823	23mm Bi-Square, Stumec	52mm	52mm	23mm			80mm	VIEW SCHEMATIC
7823SQ	23mm Square, Stumec	52mm	52mm	23.2mm			80mm	VIEW SCHEMATIC
7823STU	23mm Square, Stumec	52mm	52mm	23mm			80mm	VIEW SCHEMATIC
7825STU	25mm Bi-Square, Stumec	52mm	54mm	25mm			70mm	VIEW SCHEMATIC
7827STU	27mm Square, Stumec	52mm	52mm	27mm			80mm	VIEW SCHEMATIC
7830DSTU	30mm Hexagon, Deep, Stumec	52mm	54mm	30mm			100mm	VIEW SCHEMATIC
7830STU	30mm Hexagon, Deep, Stumec	52mm	54mm	30mm			70mm	VIEW SCHEMATIC
7832DSTU	32mm Hexagon, Deep, Stumec	52mm	54mm	32mm			100mm	VIEW SCHEMATIC
7836DSTU	36.5mm Hexagon, Deep, Stumec	52mm	54mm	36mm			100mm	VIEW SCHEMATIC
7836DSTU	36mm Hexagon, Deep, Stumec	52mm	54mm	36mm			100mm	VIEW SCHEMATIC
7836STU	36mm Hexagon, Stumec	52mm	54mm	36mm			70mm	VIEW SCHEMATIC
7839DSTU	39mm Hexagon, Deep, Stumec	52mm	59mm	39mm			100mm	VIEW SCHEMATIC
7839STU	39mm Hexagon, Stumec	52mm	59mm	39mm			70mm	VIEW SCHEMATIC
7841DSTU	41mm Hexagon, Deep, Stumec	52mm	63mm	41mm			100mm	VIEW SCHEMATIC
7841STU	41mm Hexagon, Deep, Stumec	52mm	63mm	41mm			70mm	VIEW SCHEMATIC
7842DSTU	42mm Hexagon, Deep, Stumec	52mm	64mm	42mm			100mm	VIEW SCHEMATIC
7846DSTU	46mm Hexagon, Deep, Stumec	52mm	67mm	46mm			100mm	VIEW SCHEMATIC
782128BUT-STU	21mm x 28mm Rectangle, Butterfly, Stumec	49mm	49mm		21mm	28mm	85mm	VIEW SCHEMATIC
728128STU	21mm x 28mm Rectangle, Stumec	54mm	54mm		21mm	28mm	70mm	VIEW SCHEMATIC

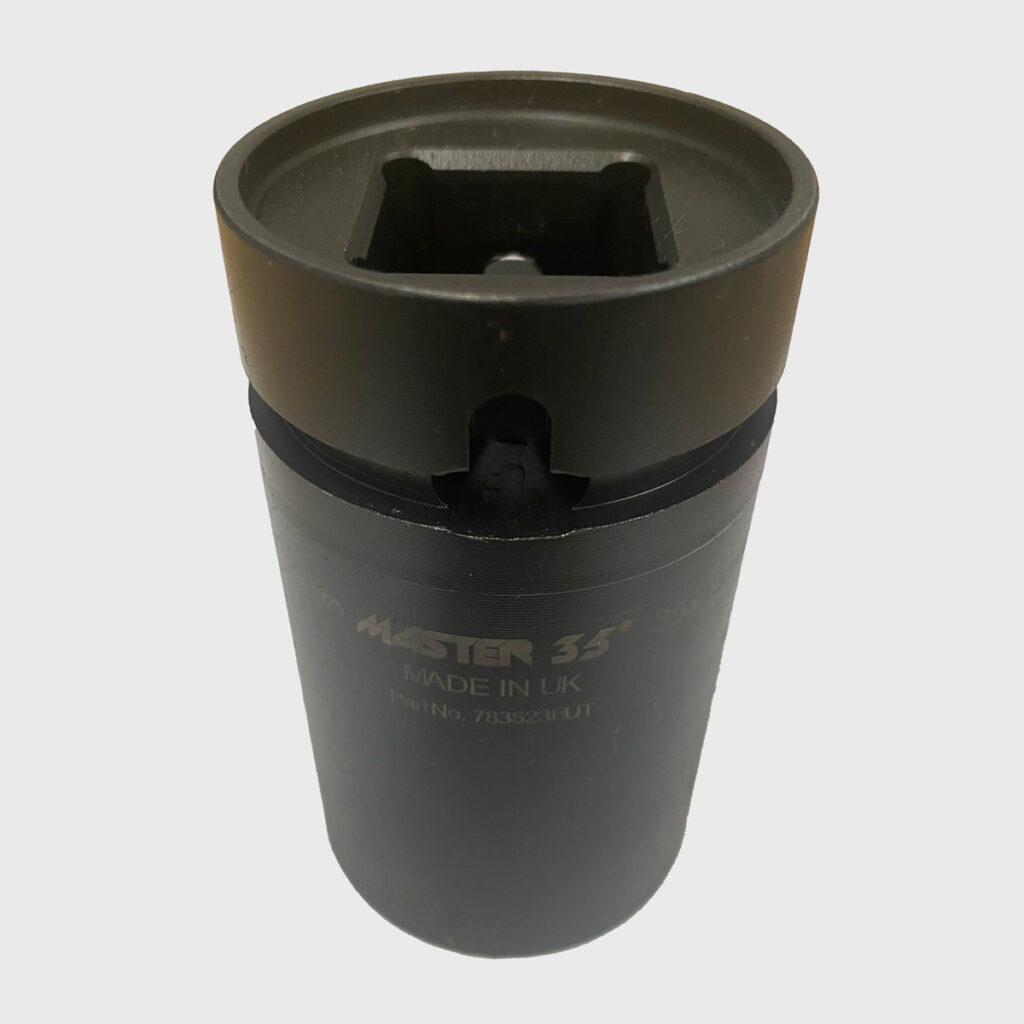

783523	35mm x 23mm Rectangle, Stumec	49mm	49mm		35mm	23mm	23mm	VIEW SCHEMATIC
