Master 35® Impact Wrench

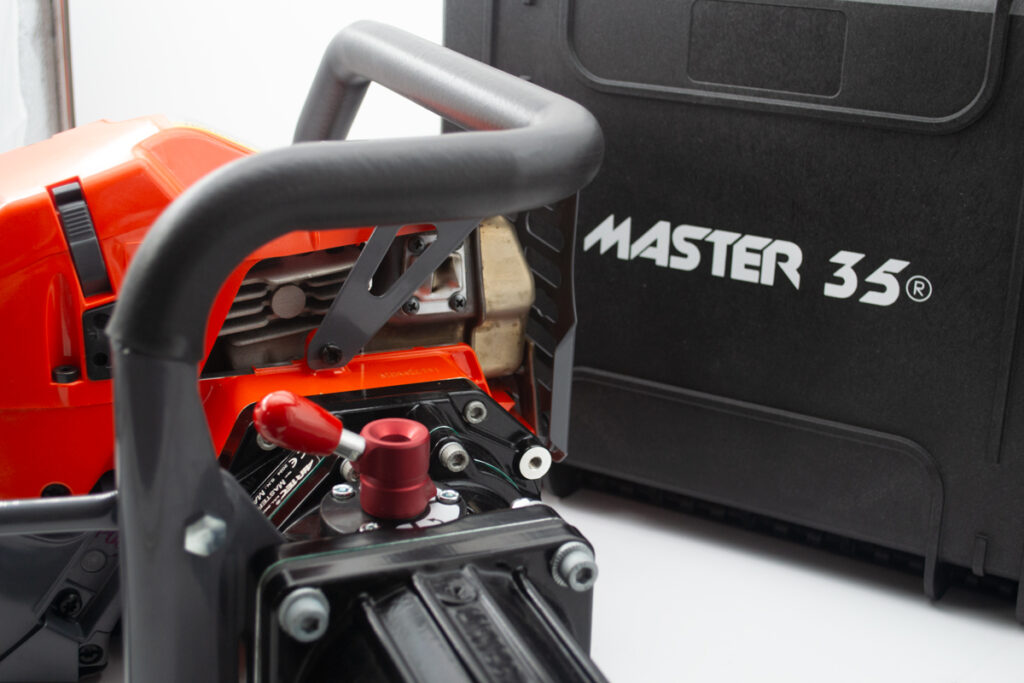

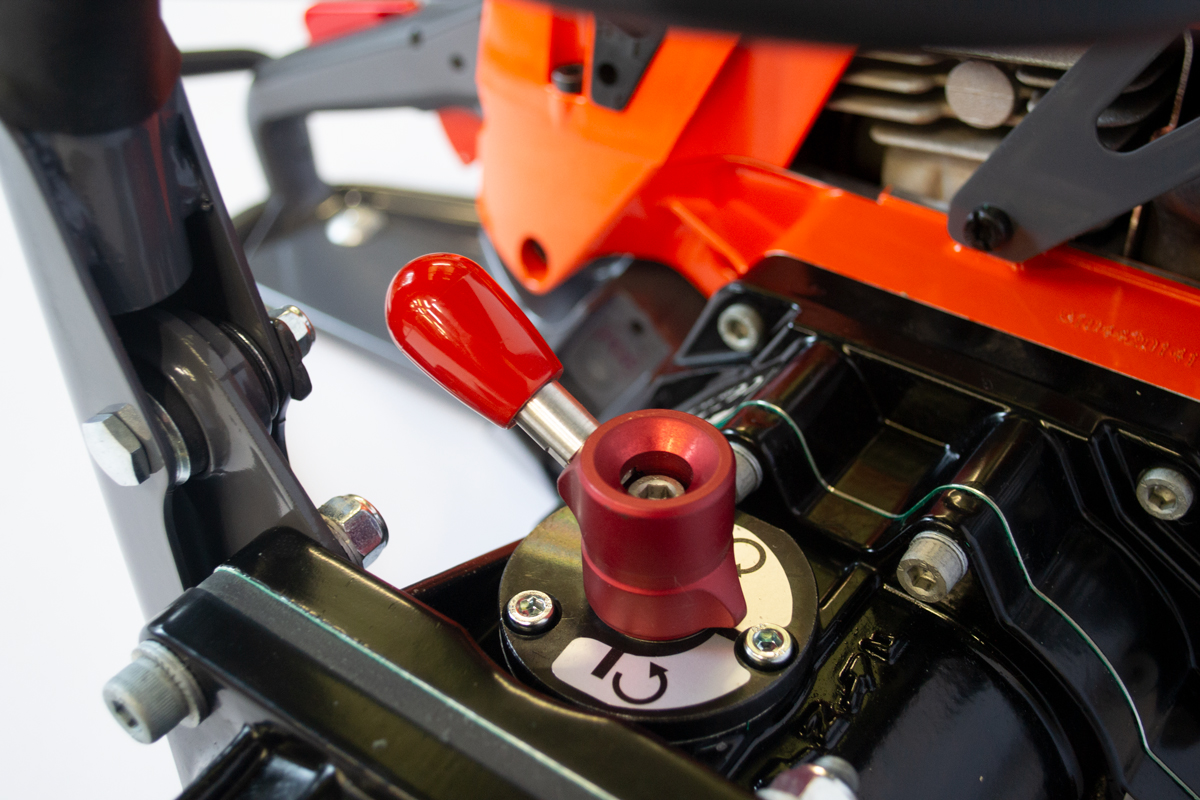

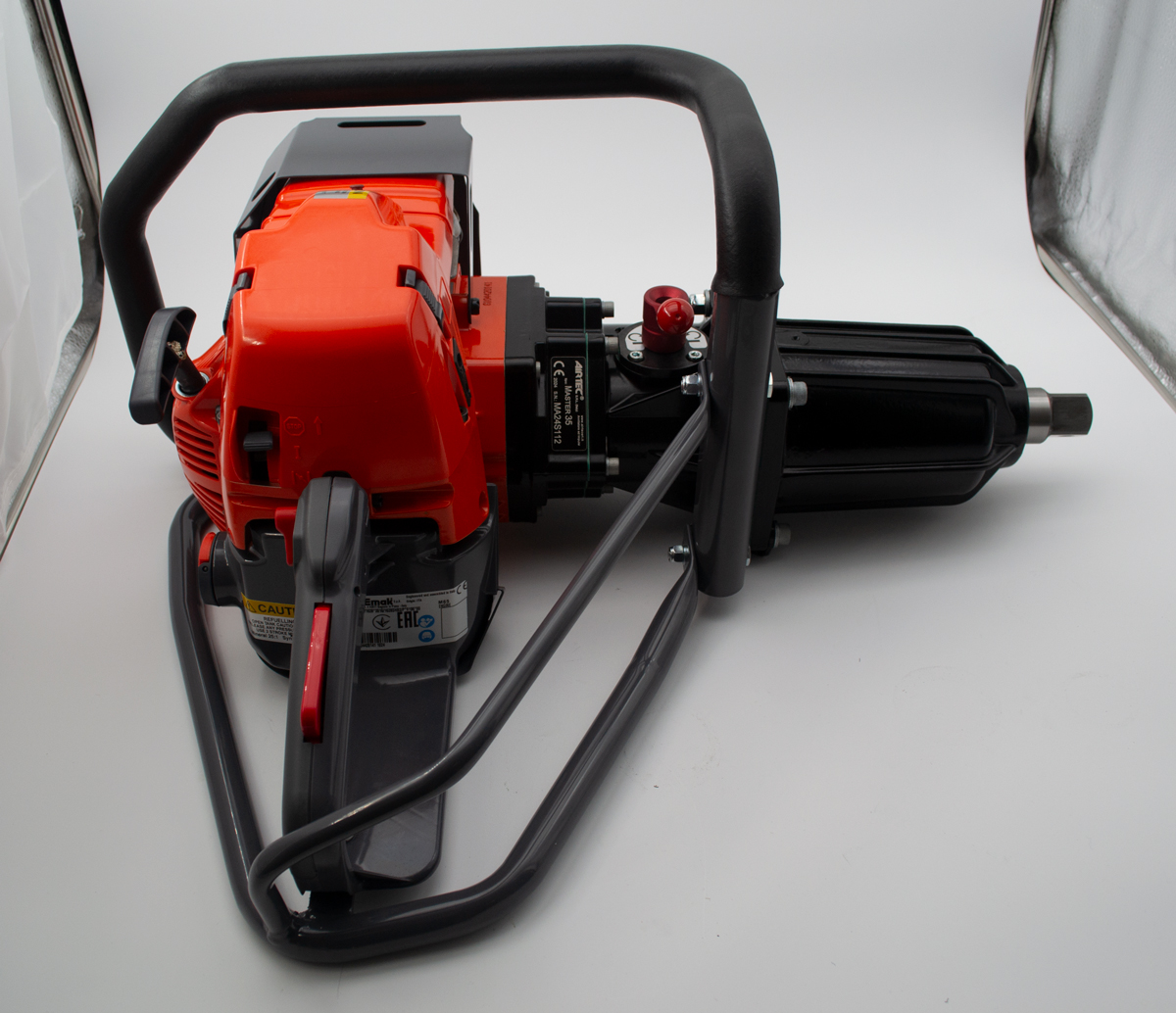

Master 35 Impact Wrench

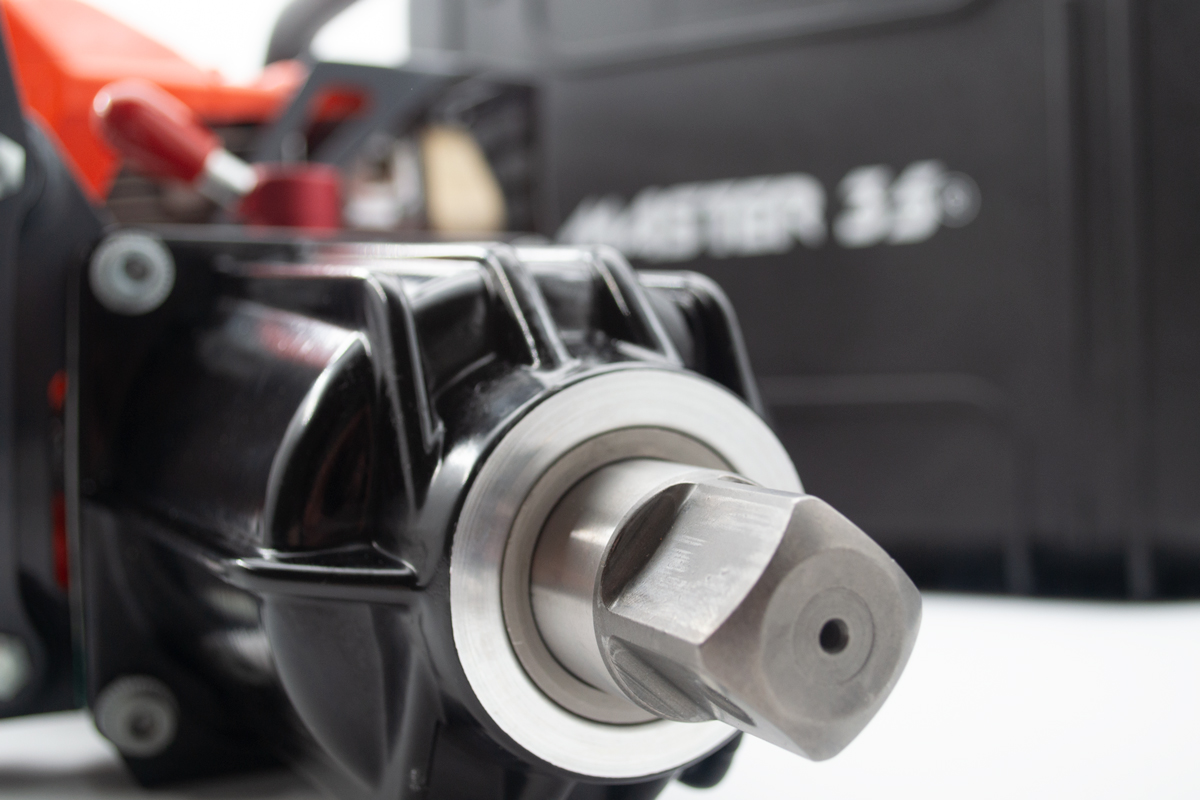

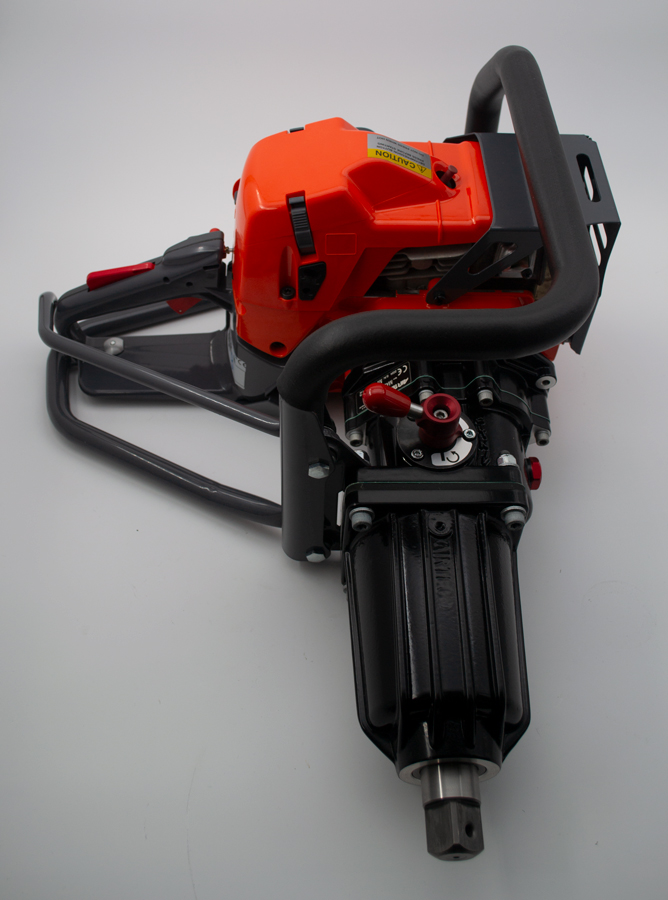

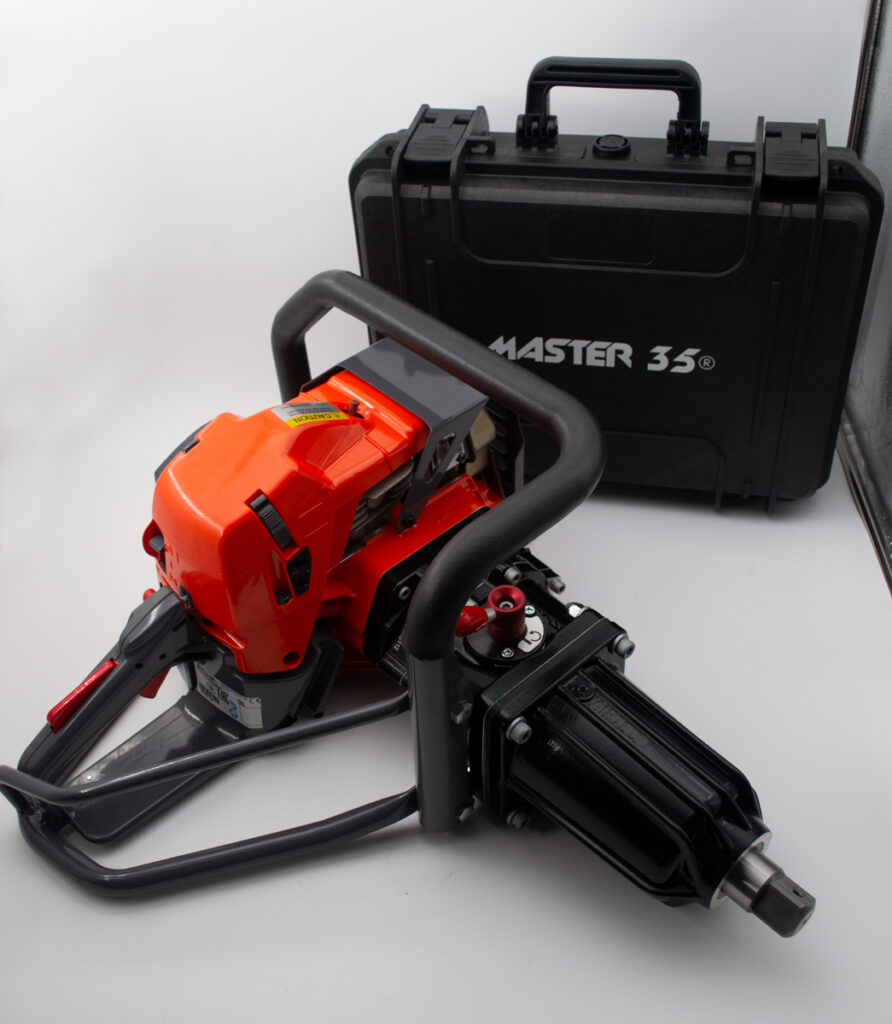

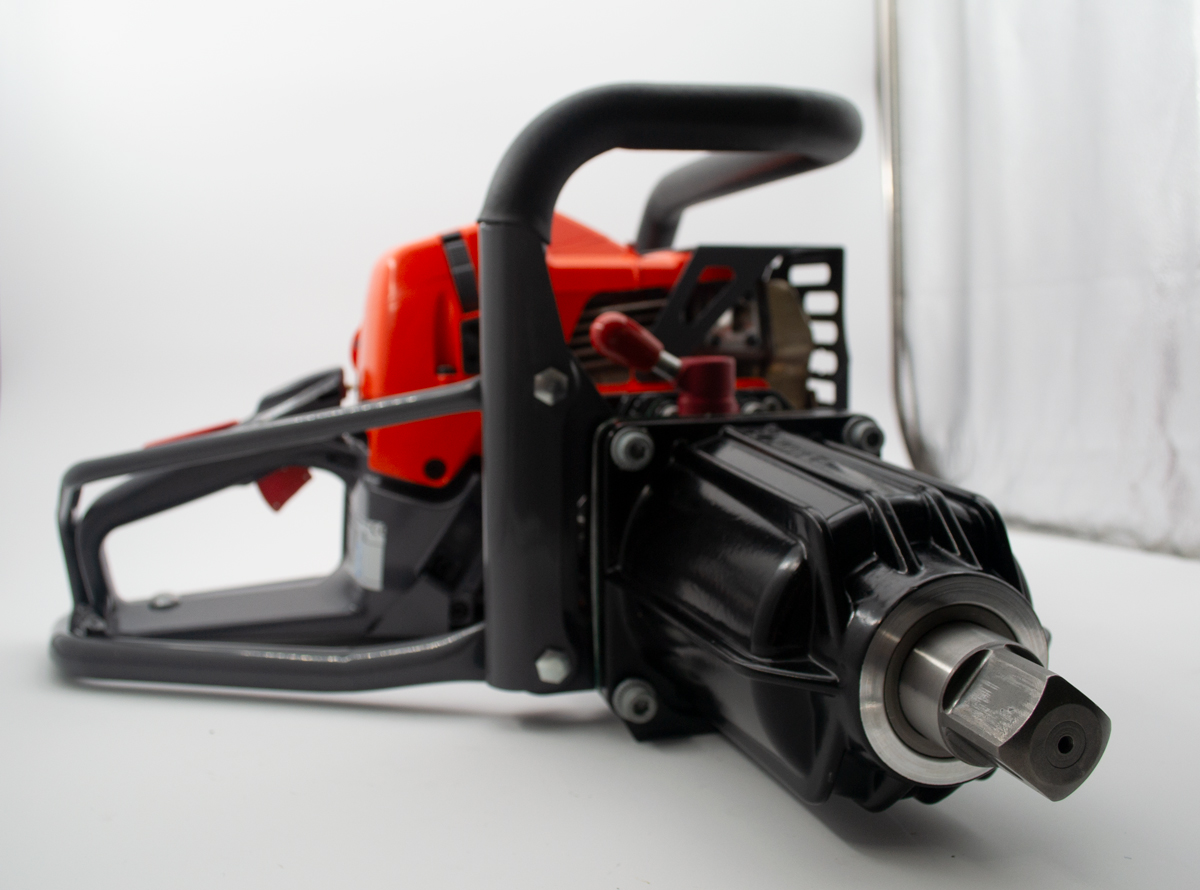

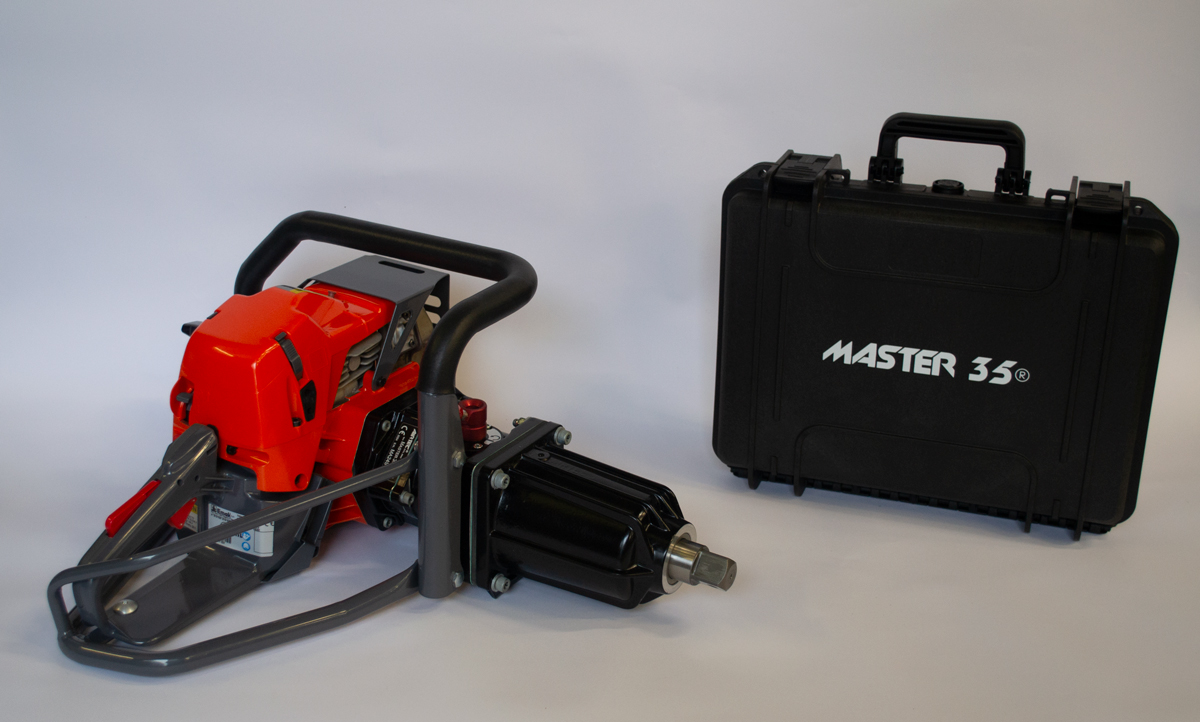

The New Master 35® Impact Wrench has the same reliable, high quality impact mechanism and gear box which has been used during the past thirty years and is now driven by a more powerful engine which complies with EUR5 and EPA3 low emission Standards.

The NEW Master 35® Impact Wrench is now powered by a more powerful Engine which complies with EUR5 and EPA3 low emission Standards.

Because of its increased power and high engineering specification it will remove/fit most Chairscrews and Fishplate Nuts in under three seconds and using one of our Safety Quick Release Auger Attachment drill holes in Wooden Sleepers.

It is easily carried by one person, is operator friendly, has good balance, easy to repair and because it is so fast, reduces the potential harm of vibration exposure especially when fitted to our Tool Carrier.

Impact Wrenches, Tool Carriers, Spare Parts and Accessories are available from stock held by our partner Distributors throughout the World.

The Benefits

Lower Weight

Increased Power

Full Anti-Vibration

Faster Operation

Lower Maintenance Costs

Improved Efficiency

The Benefits

Lower Weight

Increased Power

Full Anti-Vibration

Faster Operation

Lower Maintenance Costs

Improved Efficiency

Technical Data

Dimensions 600mm (L) x 452mm (W) x 284mm (H)
Weight 17.9 Kgs

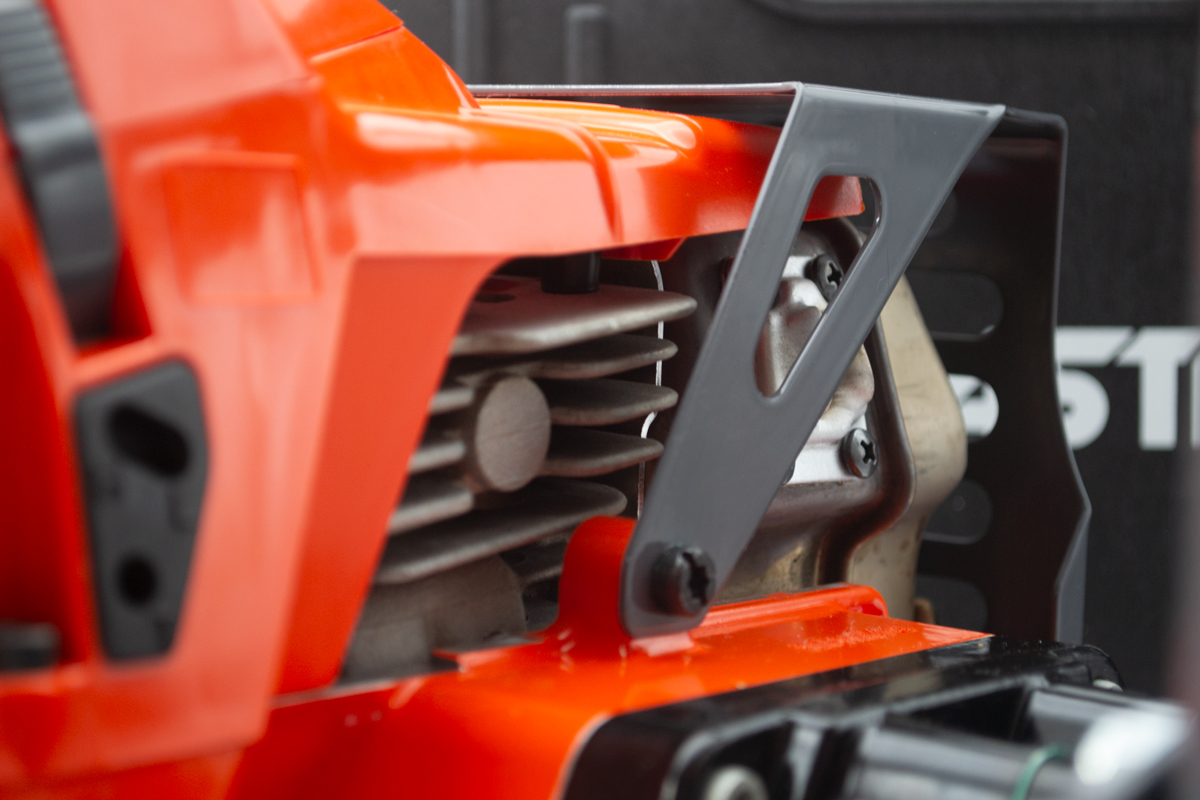

Engine Two stroke/cycle Special Airtec EMAK 63.4 c.c. complying with EUR5 and EPA3 Standards
Power 3.4 HP 2.6kW @ 7800rpm
Fasterner Type Bolt (16 – 32mm diameter)
Rectangular (all sizes)
Hexagon (up to 83mm)
Noise Levels Operation levels based on ISO3744
Acoustic Pressure (LpA) 101.7 dBA
Power (LWA) 114.8 dBA
Always wear ear protection
Square Drive Standard 1″
Torque Range 500 – 2,500Nm approximately. It is possible to generate higher torques under special conditions. The Master will loosen any screwed fastener previously tightened by any other Petrol/Gas Driven Impact Wrench
Vibration Exposure Vibration exposure is more important than vibration e.g. a low vibration machine which takes a long time to perform a task generates higher vibration exposure than a higher vibration machine which performs a task much more quickly.
The following data is based on practical on track testing carried out in the UK in February 2020
Fishplates / Joint Bar Nuts – 2.24 seconds
EAV ELV
Vibration Trigger Time Minutes No of Fasteners Trigger Time Minutes No of Fasteners
Tightening 12.28m/s2 20 533 80 2133
Loosening 11.05m/s2 25 667 98 2613
Chairscrews / Lagscrews – 2.5 seconds
EAV ELV
Tightening 11.90m/s2 21 504 85 2040
Loosening 14.72m/s2 14 336 55 1320
